Alder Brook

Alder Brook had become a recurring maintenance issue for the Town of Brownville, Maine. Repeated culvert failures disrupted traffic, strained budgets, and impacted a sensitive stream corridor. The replacement crossing needed to improve resiliency without increasing environmental risk. The new crossing had to last and respect a sensitive stream corridor. The project presented the perfect opportunity for Velpont to demonstrate its efficient installation, precast durability, and eco-sensitivity.

THE CHALLENGE: Repeated Washouts and Limited Options

The existing culverts were undersized and couldn’t handle high water flows, debris, or ice. Washouts became a pattern. Each repair meant more cost, more disruption, and more work in and around the stream.

Culverts were not a viable long-term fix given the required span and the site’s history. A cast-in-place bridge system with traditional concrete abutments was considered, but that approach would have required longer construction time, more on-site forming and curing, and greater exposure to weather and stream impacts.

The Town needed a durable bridge crossing solution that could be built efficiently and reduce the likelihood of having to go through this again.

THE SOLUTION: Velpont Modular Precast with an Open Bottom

The Velpont abutment system was selected for the project and produced by Dirigo Bridge Co., a licensed Velpont precast manufacturer in Maine. Its open-bottom design allows the stream to remain natural beneath the roadway, supporting aquatic passage and reducing concerns about future blockage or scour.

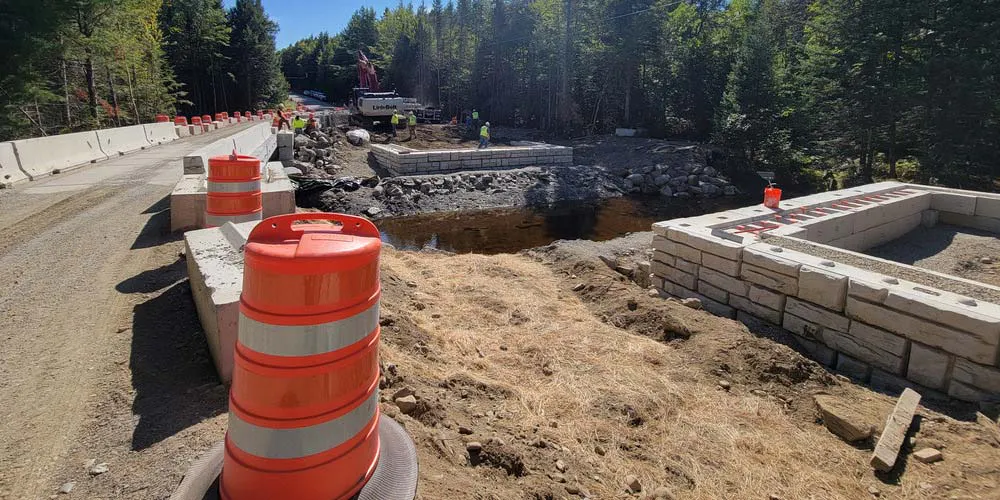

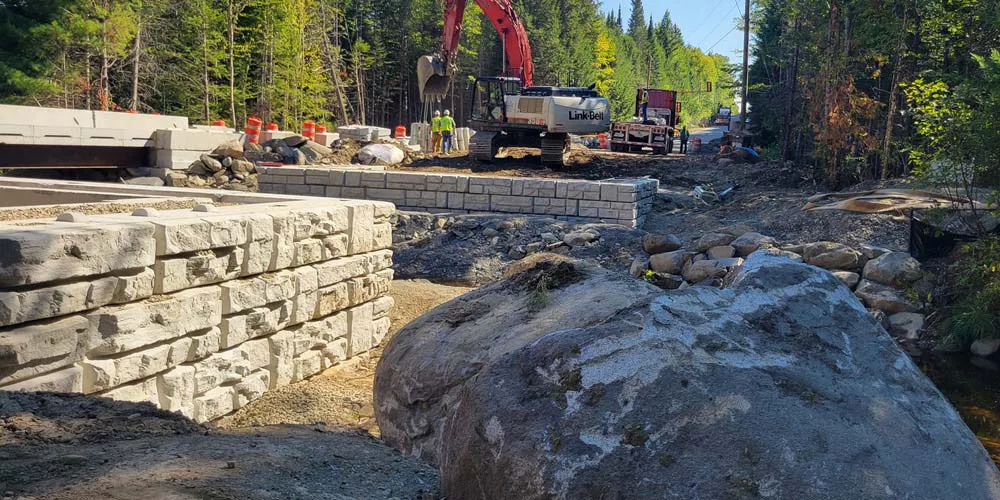

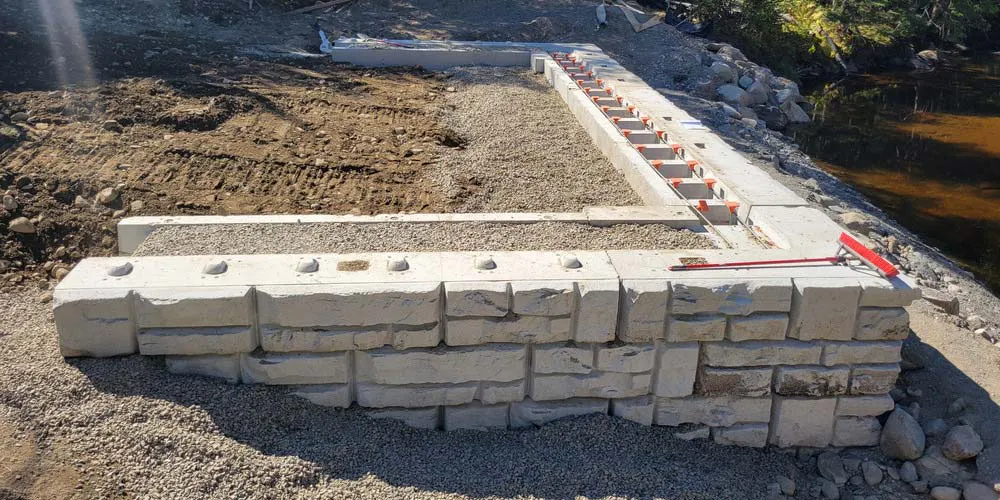

Installation was handled by Sunset Developments, who used the modular precast system to simplify the build. Abutment blocks were machine-placed on prepared foundations, limiting in-stream work and reducing on-site time.

THE PROJECT: Short Construction Window and Controlled Sequencing

After site preparation, Sunset Developments installed the precast abutments and set the superstructure over just days, not the weeks that in-stream culverts or cast-in-place alternatives typically require. Because the system relies on prefabricated components, the focus was on placement and alignment rather than building everything in place.

Backfilling and riprap placement were completed in a controlled sequence, followed by roadway restoration. The streamlined process helped limit impacts to both the road and the stream.

THE OUTCOME: A Reliable Crossing Built to Weather Future Storms

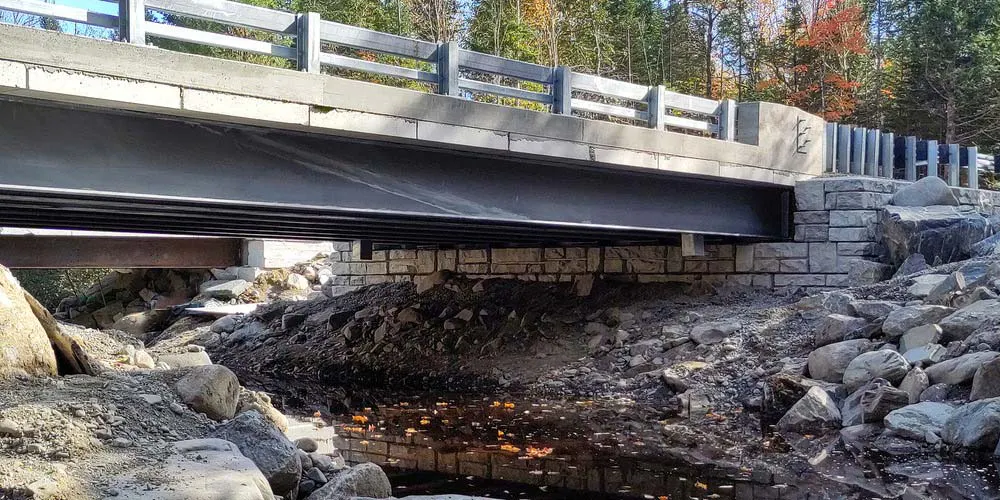

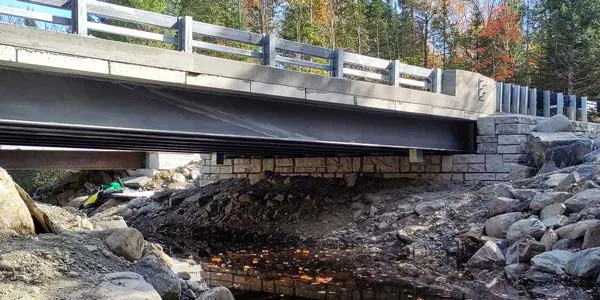

The finished Velpont crossing provides the Town with a reliable bridge that will handle future storm events without washouts. Road safety and long-term maintenance outlook both improved, and the stream now flows naturally beneath the structure.

What was once a costly, chronic repair headache is now a durable, long-term crossing.
